Half Profile Cylinder
Abloy's half profile euro cylinder would be for a single side of a door or for doors with only one lock. Some devices and changeable core padlocks also take half profile cylinders.
Euro Profile Cylinder
Abloy Euro Profile Cylinders are replacement cylinders that fit European locking devices that take profile cylinders. They are also used in some sliding glass doors and devices in North America. We stock virtually all of the unique sizes and combination of sizes for these cylinders from 30mm to 60mm. If you need a size we do not carry please contact us for details.
Euro profile cylinders fit many different applications and are designed to meet the Din Standard 18251 for sizing. The only size that generally varies on a euro profile cylinder is the exterior / interior (on non half-euro cylinders) length. Note that when measuring, cylinders are generally a few mm longer than the stated length. A 30mm euro profile cylinder is frequently between 31-33mm long. If you had a double cylinder that measured 75mm long and was equal on both sides this would actually be a 35/35mm cylinder. If you are not sure about your length or have questions please let us know.

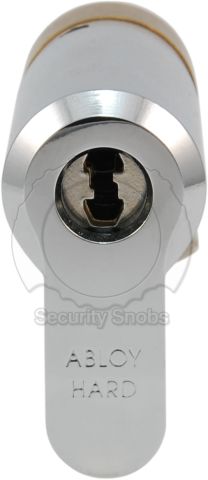

Abloy Hardened / Non hardened Cylinders
Abloy makes two different types of euro profile cylinders with slightly different configurations. Hardened cylinders that have hardened steel on the outside of the cylinder to resist drilling and other forms of attack, and non-hardened cylinders that do not. In general hardened cylinders should be used on any outward facing doors with non-hardened cylinders for internal doors. The two different cylinder types do have some other minor differences, only non-hardened cylinders are available in the bright brass finish, however the hardened cylinders support a larger variety of lengths. If you have any questions please contact us and we are happy to help.
Abloy is one of the most reputable high security lock manufacturers in the world. Abloy is based out of Finland and their current top of the line lock system is the Abloy Protec/Protec2 system. The Abloy Protec system came out in 2001 and features a unique rotating disk based system with a disk blocking anti pick system that is unique to them. It is completely bump proof and extremely pick resistant (no known picking attacks have been successful). It is well respected as one of the top of the line high security locks in the world. It has one of the largest key spaces of any high security system with over 2 billion possible keys. Virtually all Abloy locks can be keyed to work with the same set of keys. The Abloy Protec2 was introduced in December of 2012 and it makes some refinements to the Abloy Protec system. The primary features include minor additional drill resistance, harder to copy keys with an interactive element and an extended patent through 2031. To order locks in the Protec2 system select “Protec 2 Elite” under key profile on the product options. For more details please see our Abloy Brand Information page.
Key Profile / System
Abloy currently has two different systems of locks the Abloy Protec2 and the Abloy Protec. First you must decide which system you would like to buy, most locks are available in both systems. For more information on the Protec1 verse the Protec2 please see our Abloy Brand Information page. To order a lock in the Abloy Protec2 you must select a key profile that has the number 2 in its name (ie "Protec2 Elite" or "Ruby2 Exclusive"). Next you have a choice of key profile, the key profile of a lock primarily is an issue of key control. Legally the Protec Elite and Ruby Exclusive key profiles have the same level of key control, no dealer other than the dealer who originally issued the keys (or the Factory) can cut more keys. Technically, with the standard Protec Elite key profile, all Abloy Protec/Protec2 dealers in the US have access to this key blank. This is a slight security risk as it does mean they could duplicate a Protec/Protec2 Elite key if they wanted to (but they would break their contract with Abloy in doing so and we have yet to hear of a dealer doing so). Our Ruby Exclusive key profile is a key blank that is only issued to us, which removes the option for another Abloy dealer to duplicate your ruby key as they do not have access to the key blanks. A Protec Elite key will not even fit in a Ruby Exclusive lock. The Ruby Exclusive is a very secure level of key control giving peace of mind to even the most worried lock owner. Having an exclusive key profile can also be useful if an eventual attack against the Abloy Protec is found. While it is hard to speak about something that has not happened, many advanced rights escalation attacks, or advanced attacks against high security locks, require having a key (or key blank) that fits the lock. With the Ruby Exclusive you will make it harder for an attacker to have access to a fitting key.
Keyed Alike / Master Keying
Master Keying and Keying Alike are both services we are happy to offer however they do require that all the locks are the same key profile (Ruby Exclusive or Protec Elite).
We are able to key your locks alike(to the same key) during ordering at no cost. We can also master key(see our Master Keying Page) your locks starting at $15 per cylinder. Keyed alike means that if you order two padlocks and a deadbolt from us we can key them all to operate on the same key. To order two or more locks keyed alike, just select "keyed alike" under keying for each lock and all locks that are the same color will be keyed the same. During checkout there will also be a notes area and you can comment on how you want the locks keyed if you wish to provide additional clarification. It is important to note that when keying alike you do not get more keys for each lock you order, just the initial lock's number of keys. This means no matter if you order 2 or 5 padlocks keyed alike, you will only get 2 keys total. If you require additional keys just order extra keys. There is no additional charge for keying alike. Master keying can allow you to allow some keys to open some locks and other keys to open all locks. You can specify your desired master keying in the notes area when checking out, or you can simply put a note in to call, and we will call you to discuss your needs. If you are looking to have locks or keys to a previous order please see our keyed to a previous order page.
Abloy keys have a variety of color inserts that can be selected to help keep track of your Abloy keys from one another. Below, you are able to pick a color for your key indicators. If you want a different color for one or more of the keys, please specify the colors you want in the notes area during checkout. In addition, Abloy keys can have an optional plastic key head. Our Abloy Plastic Key Heads are found under the Accessories category. The plastic key head does not block the color indicator dots.
Engraving / Stamping
Some customers wanted additional protection against advanced drilling and grinding attacks, because of this we now offer an engraving/stamping service. This allows for cylinders to be engraved with a unique custom serial number for added protection. It ensures your lock cannot be easily replaced without your knowledge, for example from advanced drilling or grinding attack. If at any point you are unsure if your lock is original you can check to ensure the serial number is still in place. This is a relatively new service offered and the engraving is not able to be automatically done on all Abloy products. To supplement this we can hand stamp any of our cylinders that cannot be engraved. This service is provided for free to customers who request it. If a customer has purchased a lock from us previously, they can return the lock to us and we are happy to engrave it free of charge.
Please note when ordering extra keys you are ordering extra keys per lock. This means if you select 3 extra keys and then order a quantity of 2 locks you will get 6 extra keys. To order the correct number of extra keys you can divide the number of extra keys by however many locks you are ordering and put that under extra keys. The other option for extra keys is to add a quantity of 1 of the item you are ordering to your cart with the correct number of extra keys, and then go back and add however many more of the lock you want with 0 extra keys. It will mean you have to pick the options for the product twice, but will ensure you get exactly how many keys you want.
Euro profile cylinders are used in a wide variety of applications. These instructions are meant for standard doors that take euro profile cylinders, and not padlocks or other euro profile devices. First you must remove the existing euro profile cylinder from the door, there is a long screw from the side of the door that goes through the euro profile cylinder that must be removed to allow removal of the cylinder. The key may need to be inserted so that the cam in the middle of the cylinder is perpendicular for successful removal. Once the old cylinder is removed the new cylinder can be inserted (again the key needs to be used to ensure the cam is perpendicular to install the cylinder). Once inserted the new cylinder can be screwed into place.
This product has the following related skus: ABL-CY331, ABL-CY321, ABL-CY331T, ABL-CY331N, ABL-CY331C, ABL-CY331E, ABL-CY331D, ABL-CY331C, ABL-CY331P, ABL-CY331B
