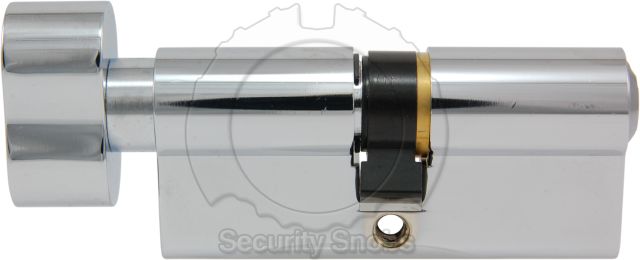

BiLock Single Cylinder with Thumbturn
This profile cylinder features a lockable cylinder on one side with a thumbturn knob on the other. This allows for easy unlocking of the lock from the inside.
Euro Profile Cylinder
BiLock Euro Profile Cylinders are replacement cylinders that fit European locking devices that take profile cylinders. They are also used in some sliding glass doors and devices in North America. These are 35mm per side cylinders, we are able to get other sizes please contact us for details.
Euro profile cylinders fit many different applications and are designed to meet the Din Standard 18251 for sizing. The only size that generally varies on a euro profile cylinder is the exterior / interior (on non half-euro cylinders) length. Note that when measuring, cylinders are generally a few mm longer than the stated length. A 30mm euro profile cylinder is frequently between 31-33mm long. If you had a double cylinder that measured 75mm long and was equal on both sides this would actually be a 35/35mm cylinder. If you are not sure about your length or have questions please let us know.
BiLock is a high security brand that features a unique Quick Change Core (QCC) system and is based out of Australia. BiLock features a unique U shaped key that utilizes a pin and sidebar system that is extremely pick resistant and completely bump proof making it a popular choice by casinos and businesses around the world. The QCC system from BiLock works in all of their locks and allows for the instant removal of the core of the lock with a control key to allow a new core to be easily inserted. Virtually all of their locks can use the same key and interchangeable QC cores. BiLock has extensive retrofitting and compatibility features allowing it to be used in many existing locking systems. For more details please see our BiLock Brand Information page.
Key Type / System
There are two primary key types/systems for BiLock: EX / QC both are part of the New Generation (NG) BiLock system. Each key type also influences the build of the lock itself. Not all locks support all key types, however most locks do support both. The EX is BiLock's original key type and has no specific features. The primary key type is BiLock's innovative Quick Change Core (QCC) system. The QCC system is an interchangeable core meaning that in addition to the standard operating keys you have a control key. With the control key you are able to remove the core of the lock and insert the core from another QC lock (or spare core). This process can be done in under 30 seconds and without removing the lock from the door or requiring any tools. Some customers have even used the QC system on their homes and businesses to change out their door locks for sitters, maids, or construction workers. For more details please see our Choosing A Brand page. Any QC lock will come with one control key and one operating key. When ordering additional QC keys please specify the key type (control or operating) in the notes field on the final page of checkout (where you enter your credit card) otherwise we will assume they are standard operating keys. QC cores can be purchased separately on our BiLock Extra QC Core page. There is no real reason not to get an QCC lock even if you do not plan to use the QC system now you at least have that option for later. BiLock officially also has the First Gen and EX short / D9 systems, while we do not show these as a product option they are in stock and contact us if you need one of these systems.
Keyed Alike / Master Keying
Master Keying and Keying Alike are both services we are happy to offer however they do require that all the locks are the same key type (EX/Ex Short/QC).
We are able to key your locks alike(to the same key) during ordering at no cost. We can also master key(see our Master Keying Page) your locks starting at $15 per cylinder. Keyed alike means that if you order two padlocks and a deadbolt from us we can key them all to operate on the same key. To order two or more locks keyed alike, just select "keyed alike" under keying for each lock and all locks that are the same color will be keyed the same. During checkout there will also be a notes area and you can comment on how you want the locks keyed if you wish to provide additional clarification. It is important to note that when keying alike you do not get more keys for each lock you order, just the initial lock's number of keys. This means no matter if you order 2 or 5 padlocks keyed alike, you will only get 2 keys total. If you require additional keys just order extra keys. There is no additional charge for keying alike. Master keying can allow you to allow some keys to open some locks and other keys to open all locks. You can specify your desired master keying in the notes area when checking out, or you can simply put a note in to call, and we will call you to discuss your needs. If you are looking to have locks or keys to a previous order please see our keyed to a previous order page.
BiLock keys can have various multi-colored key heads. The key head is actually made up of two different parts, an inner part and an outer part. They can be the same or different colors.
Please note when ordering extra keys you are ordering extra keys per lock. This means if you select 3 extra keys and then order a quantity of 2 locks you will get 6 extra keys. To order the correct number of extra keys you can divide the number of extra keys by however many locks you are ordering and put that under extra keys. The other option for extra keys is to add a quantity of 1 of the item you are ordering to your cart with the correct number of extra keys, and then go back and add however many more of the lock you want with 0 extra keys. It will mean you have to pick the options for the product twice, but will ensure you get exactly how many keys you want.
Euro profile cylinders are used in a wide variety of applications. These instructions are meant for standard doors that take euro profile cylinders, and not padlocks or other euro profile devices. First you must remove the existing euro profile cylinder from the door, there is a long screw from the side of the door that goes through the euro profile cylinder that must be removed to allow removal of the cylinder. The key may need to be inserted so that the cam in the middle of the cylinder is perpendicular for successful removal. Once the old cylinder is removed the new cylinder can be inserted (again the key needs to be used to ensure the cam is perpendicular to install the cylinder). Once inserted the new cylinder can be screwed into place.
This product has the following related skus: BIL-5313
