ASSA Desmo Mini Padlock

ASSA Desmo Mini Padlock

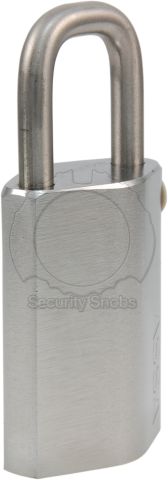

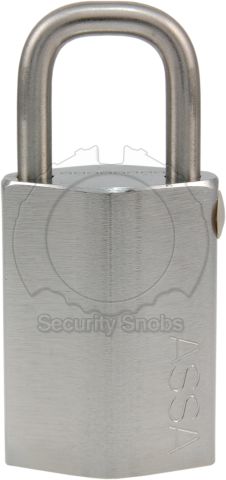

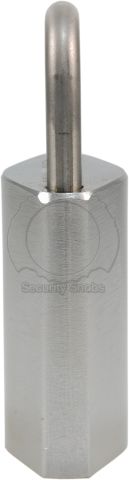

ASSA Desmo Padlock With Keys ASSA Desmo Padlock Keyway ASSA Desmo Padlock Front View ASSA Desmo Padlock Profile View ASSA Desmo Padlock Side View
Jump to Product Options/Ordering

The ASSA Desmo Mini Padlock
ASSA's Desmo mini padlock is a brass body padlock with a stainless steel shackle.  It features an 8 Pin ASSA Desmo cylinder that is extremely durable and weather resistant.  The key can rotate 365 degrees in either direction in the padlock.  The key is only removable at one position, and can be opened at 90 or 240 degrees of rotation.  Below are the technical details (exact measurements given in mm):

  • Brass Body
  • Stainless Steel Shackle
  • 1 and 5/8" (42mm) tall body
  • 1 and 1/5" (31mm) wide body
  • 3/4" (19mm) thick body
  • 1/5" (5mm) thick shackle
  • 5/8" (16mm) wide shackle clearance
  • 4/5" (20mm) tall shackle clearance

 Each padlock comes with two keys.  Additional keys or keying alike is available. Please contact us for details.


ASSA Desmo

The ASSA Desmo lock is a springless lock with pins that follow track cuts on both sides of the Desmo key.   It is most frequently found in cam lock form that is frequently used by casinos, cashboxes, and in other high security devices.   It features two independent sidebars and is key retaining lock.  It is a bump proof product that is extremely durable and resilient.   The Desmo key is made of solid nickel silver for durability and is 30% thicker than most high security keys and features no deep cuts to weaken the key itself.

This product has the following related skus: CUS-92303, CUS-ASA-92303
SKU CUS-92303
Weight 0.50 lbs
Cylinder Type ASSA Desmo Security
Body Material Brass
Shackle Material Composite Alloy
Body Height 42mm
Body Width 31mm
Body Thickness 19mm
Shackle Thickness 5mm
Shackle Width Clearance 16mm
Shackle Height Clearences 20mm
Quick Rekey No
Shackle Style
Our price: $95.00 (85.19 or 0.003 BTC)
Shackle Height
Direct compare product with:
