BiLock Grade 1 Single Cylinder Deadbolt

BiLock Grade 1 Single Cylinder Deadbolt

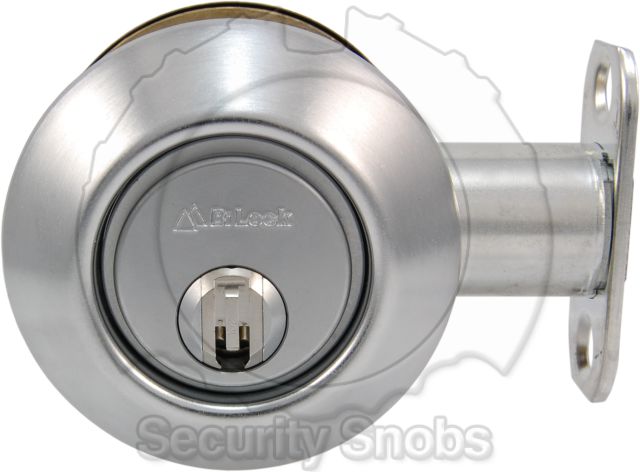

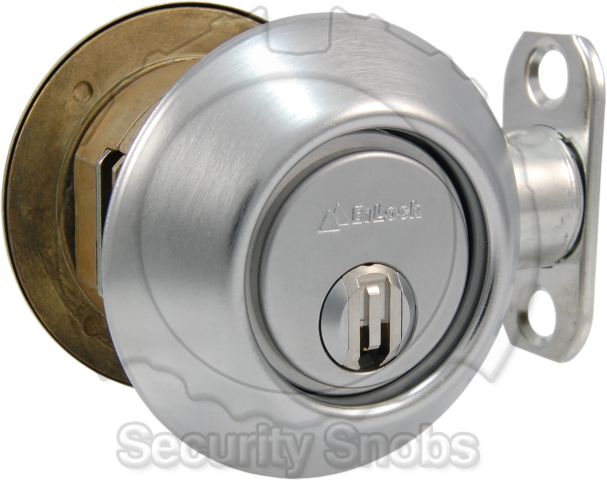

BiLock Grade 1 Single Cylinder Deadbolt BiLock Grade 1 Single Cylinder Deadbolt Exterior BiLock Grade 1 Single Cylinder Deadbolt Interior BiLock Grade 1 Single Cylinder Deadbolt Side View BiLock Grade 1 Deadbolt Finishes Sample Security Snobs Key Card Door Backset/Thickness Guide BiLock Key Colors
Jump to Product Options/Ordering

Single Cylinder Deadbolt

A single cylinder deadbolt assembly includes a keyed cylinder for the outside of the door, a thumbturn for the inside, key/keys (as is applicable for the specific lock type), and the bolt, door hardware and screws needed for installation.


Grade1 Deadbolt

The Grade1 deadbolts from BiLock uses a hybrid mortise solution to offer more drill and force protection compared with the standard BiLock deadbolt.


BiLock

BiLock is a high security brand that features a unique Quick Change Core (QCC) system and is based out of Australia. BiLock features a unique U shaped key that utilizes a pin and sidebar system that is extremely pick resistant and completely bump proof making it a popular choice by casinos and businesses around the world. The QCC system from BiLock works in all of their locks and allows for the instant removal of the core of the lock with a control key to allow a new core to be easily inserted. Virtually all of their locks can use the same key and interchangeable QC cores. BiLock has extensive retrofitting and compatibility features allowing it to be used in many existing locking systems. For more details please see our BiLock Brand Information page.


Key Type / System

There are two primary key types/systems for BiLock: EX / QC both are part of the New Generation (NG) BiLock system.  Each key type also influences the build of the lock itself.  Not all locks support all key types, however most locks do support both.  The EX is BiLock's original key type and has no specific features.   The primary key type is BiLock's innovative Quick Change Core (QCC) system. The QCC system is an interchangeable core meaning that in addition to the standard operating keys you have a control key.  With the control key you are able to remove the core of the lock and insert the core from another QC lock (or spare core).  This process can be done in under 30 seconds and without removing the lock from the door or requiring any tools.  Some customers have even used the QC system on their homes and businesses to change out their door locks for sitters, maids, or construction workers. For more details please see our Choosing A Brand page.  Any QC lock will come with one control key and one operating key.   When ordering additional QC keys please specify the key type (control or operating) in the notes field on the final page of checkout (where you enter your credit card) otherwise we will assume they are standard operating keys.   QC cores can be purchased separately on our BiLock Extra QC Core page.   There is no real reason not to get an QCC lock even if you do not plan to use the QC system now you at least have that option for later.   BiLock officially also has the First Gen and EX short / D9 systems, while we do not show these as a product option they are in stock and contact us if you need one of these systems.


Keyed Alike / Master Keying

Master Keying and Keying Alike are both services we are happy to offer however they do require that all the locks are the same key type (EX/Ex Short/QC).

We are able to key your locks alike(to the same key) during ordering at no cost.  We can also master key(see our Master Keying Page) your locks starting at $15 per cylinder.  Keyed alike means that if you order two padlocks and a deadbolt from us we can key them all to operate on the same key.   To order two or more locks keyed alike, just select "keyed alike" under keying for each lock and all locks that are the same color will be keyed the same.  During checkout there will also be a notes area and you can comment on how you want the locks keyed if you wish to provide additional clarification.   It is important to note that when keying alike you do not get more keys for each lock you order, just the initial lock's number of keys.  This means no matter if you order 2 or 5 padlocks keyed alike, you will only get 2 keys total.  If you require additional keys just order extra keys.  There is no additional charge for keying alike.  Master keying can allow you to allow some keys to open some locks and other keys to open all locks. You can specify your desired master keying in the notes area when checking out, or you can simply put a note in to call, and we will call you to discuss your needs.  If you are looking to have locks or keys to a previous order please see our keying page.


Key Look

BiLock keys can have various multi-colored key heads.  The key head is actually made up of two different parts, an inner part and an outer part.  They can be the same or different colors.


Extra Keys

Please note when ordering extra keys you are ordering extra keys per lock.  This means if you select 3 extra keys and then order a quantity of 2 locks you will get 6 extra keys.  To order the correct number of extra keys you can divide the number of extra keys by however many locks you are ordering and put that under extra keys.  The other option for extra keys is to add a quantity of 1 of the item you are ordering to your cart with the correct number of extra keys, and then go back and add however many more of the lock you want with 0 extra keys.  It will mean you have to pick the options for the product twice, but will ensure you get exactly how many keys you want.


Installation
BiLock Grade 1 Single Cylinder deadbolts fit doors between 1 3/8" and 1 3/4" thick and can be installed using your existing deadbolt holes.  To install, begin by checking the two threaded allen screws that screw into the outside of the mortise housing.  They should sit flush with the outside edge (if they are out too far the bolt cannot sit tight against the housing, too far in and the mortise cylinder cannot be screwed in or the threads can be damaged). Next insert the mortise housing into the hole in your door with the black allen screws pointed towards the edge of the door where the bolt will exit.  The wide slots on the t-shaped hole should be pointed towards the bottom. The bolt can then be inserted into the edge of the door and through the t-shaped hole in the housing. The two screws that hold the bolt and the housing together can be screwed in. The mortise cylinder can then be pushed through its spin collar and screwed into the outside of the housing. Depending on your door thickness you may need to use the wave washers or spacers that are included with the lock.  Be careful not to cross thread or overtighten the mortise cylinder. The cylinder should be tightened so that the bolt sits straight in the middle of the door, it should not be pulled towards either side. Once the cylinder is in the proper position, the allen screw can be tightened by inserting the included allen wrench along the bolt from the edge of the door. Do not overtighten and be extremely careful not to strip out the allen screw. The thumbturn can be attached and then the unit should be tested.  Once everything is functioning smoothly, the bolt cover plate can be installed on the edge of the door and the strike plate can be installed on the jam in the proper location. Full instructions and a drill guide are included with each lock.  For more details please see the BiLock Grade1 Deadbolt Install Instructions.


This product has the following related skus: BIL-4311
14%
Details
SKU BIL-4311
Weight 4.00 lbs
I/C Core Yes
Drill Protection Anti Drill Option
Accessable Screws Yes
Finishes 26D (Satin Chrome)
03 (Bright Brass)
10B (Oil Rubbed Bronze)
Our price: $215.00 (155.64 or 0.452 BTC)
Options
Keying
Key Type
Extra Keys
Extra QC Control Keys
Key Primary Color
Key Secondary Color
Finish
Backset
Quantity
