EVVA MCS Mortise Cylinder

EVVA MCS Mortise Cylinder
EVVA MCS Mortise Cylinder EVVA MCS Mortise Cylinder Side View EVVA MCS Mortise Cylinder Rear Profile View EVVA MCS Mortise Cylinder Rear View Mortise Cylinder Measuring Guide Sample Security Snobs Key Card
Jump to Product Options/Ordering

EVVA MCS Mortise Cylinder

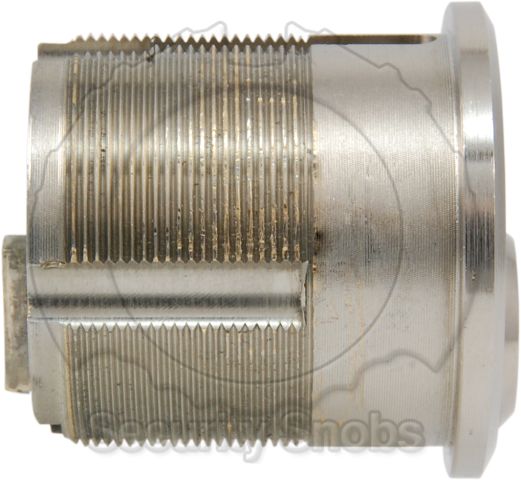

A mortise cylinder has a threaded body and is most commonly used in commercial applications, such as in glass/aluminum storefront doors.



EVVA is one of the top high security manufacturers in the world with several different active high security systems and is based out of Austria. We carry their premium MCS (Magnetic Code System) product line featuring a nearly un-duplicable key and an extremely secure cylinder with both an advanced magnetic and mechanical slider security system. MCS locks are completely bump proof and extremely pick resistant (no known picking attacks have been successful). All EVVA locks and keys are factory assembled which is great for key control and security, but also means most EVVA products may have to come direct from the factory. All MCS locks can be keyed to work with the same set of keys. For more details please see our EVVA Brand Information page.

EVVA Shipping
We normally stock EVVA locks in the default configuration (default number of keys, default finish, keyed different, etc).  Other options/keying/numbers of keys may have to come from the factory (contact us as some items are on hand).   Factory orders are generally done quarterly, with our next scheduled order in December 2019, due to quantity demands we may place an order before then.  If you need something urgently please give us a call and we can let you know availability (and the factory can always do custom runs but they incur additional shipping charges).  Factory orders are generally filled within 3-4 weeks of us placing them.

Keyed Alike / Master Keying

EVVA locks are all keyed at the factory.  We are able to have your locks keyed alike(to the same key) without issue.  We can also master key(see our Master Keying Page) your locks as you desire.  Keyed alike means that if you order two padlocks and a deadbolt(for example) from us we can key them all to operate on the same key.   To order two or more locks keyed alike, just select "keyed alike" under keying and all locks in the order will be keyed the same.   It is important to note that when keying alike you do not get more keys for each lock you order, just the initial lock's number of keys.  This means no matter if you order 2 or 5 padlocks keyed alike, you will only get 2 keys total.  If you require additional keys just order extra keys.  Master keying can allow you to allow some keys to open some locks and other keys to open all locks. You can specify your desired master keying in the notes area when checking out, or you can simply put a note in to call, and we will call you to discuss your needs.  If you require any special keying options or are unsure on the keying just put "please call" or enter additional details in the notes box during checkout and we are happy to help. If you are looking to have locks or keys to a previous order please see our keying page.

Key Look

EVVA Keys can come with colored circles on them or plastic key heads.  These items are not possible to add after the fact and must be done at the factory.  To order either colored circles or key heads on the keys please see our EVVA MCS cut key page.   Any keys ordered with your initial order will be at the discounted key price (adjusted after you submit the order.  EVVA keys can also come with electronic inserts for RFID, Prox, or HID applications.   Please contact us for more details.

Extra Keys

Please note when ordering extra keys you are ordering extra keys per lock.  This means if you select 3 extra keys and then order a quantity of 2 locks you will get 6 extra keys.  To order the correct number of extra keys you can divide the number of extra keys by however many locks you are ordering and put that under extra keys.  The other option for extra keys is to add a quantity of 1 of the item you are ordering to your cart with the correct number of extra keys, and then go back and add however many more of the lock you want with 0 extra keys.  It will mean you have to pick the options for the product twice, but will ensure you get exactly how many keys you want.

Mortise Lock Installation

Mortise locks are easily installed into existing doors.  First you must remove the existing mortise cylinder.  On the side of the door will generally be a hex screw that can be backed out about 1/4" to 1/2".  Once this is done the mortise cylinder is simply unscrewed from the door.  This can be done by inserting the key partway in and turning counter clockwise to help get the lock unscrewed.  Once the old lock is removed from the door the new lock is inserted.  The new lock is then screwed into place (ensure the lock is facing up properly, do not simply screw the lock as far down as it goes).  It can be a good idea to try and hold the lock body while turning the key to ensure proper function before screwing the hex screw back down to lock the cylinder in place.  Once the lock is functioning tighten the hex screw completely down onto the cylinder to keep it from unscrewing and your lock is installed.

This product has the following related skus: EVA-RZM, EVA-RZM3, EVA-RZM4
Weight 0.50 lbs
Our price: $260.00 (233.14 or 0.008 BTC)
